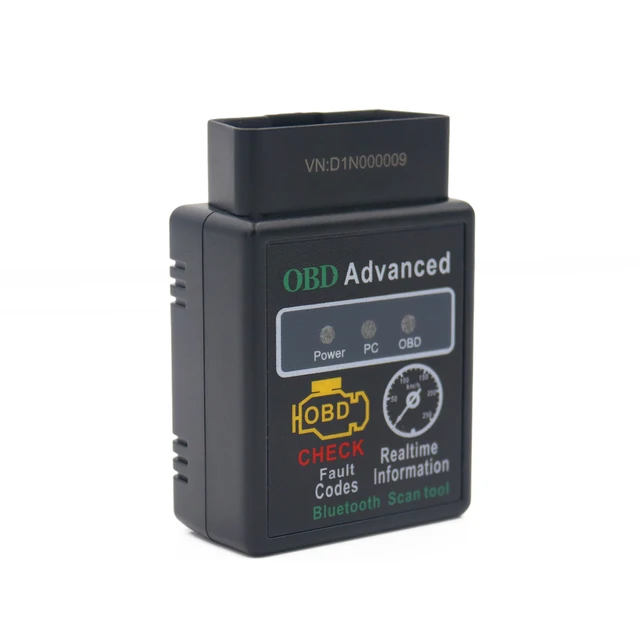

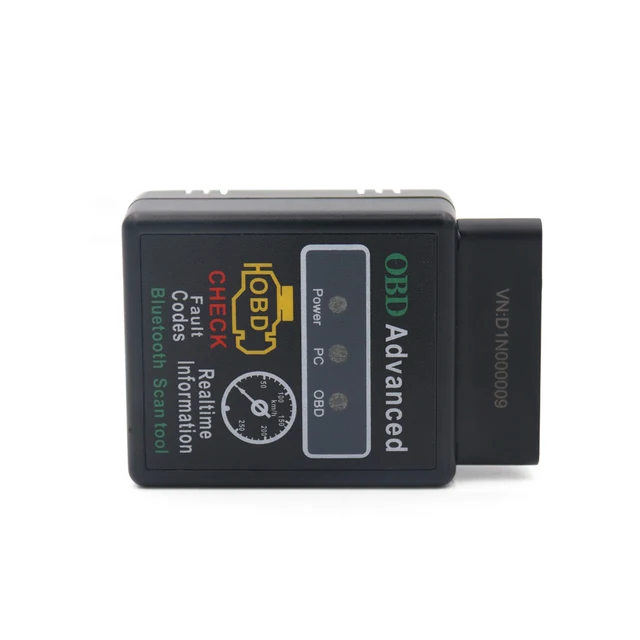

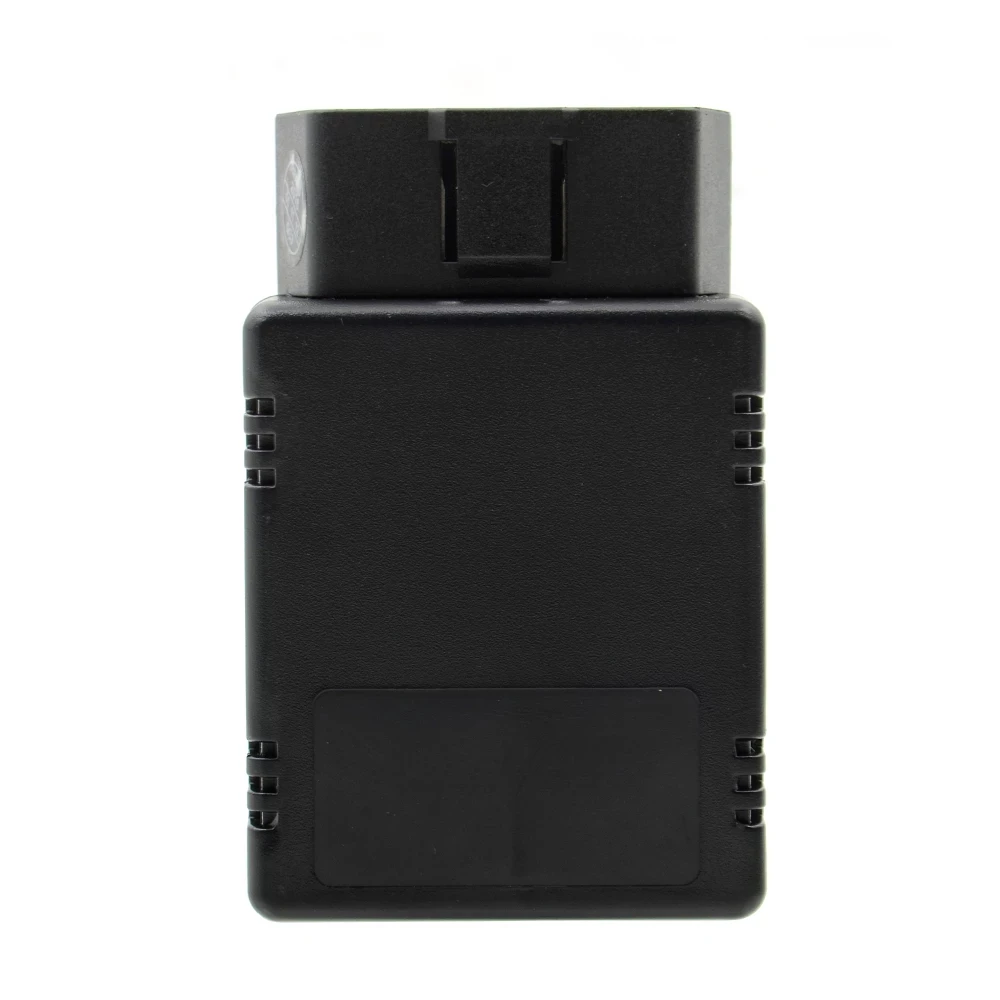

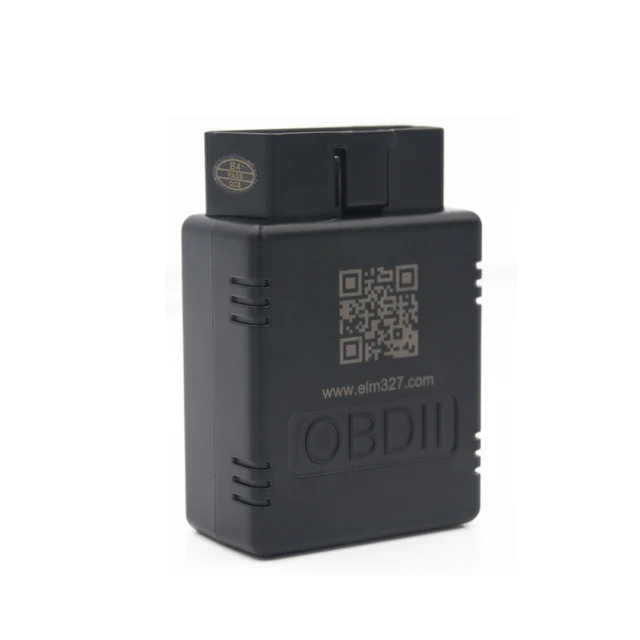

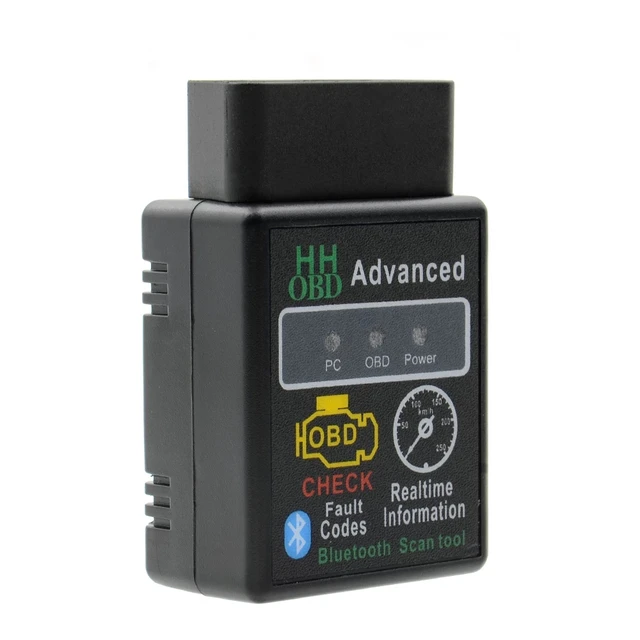

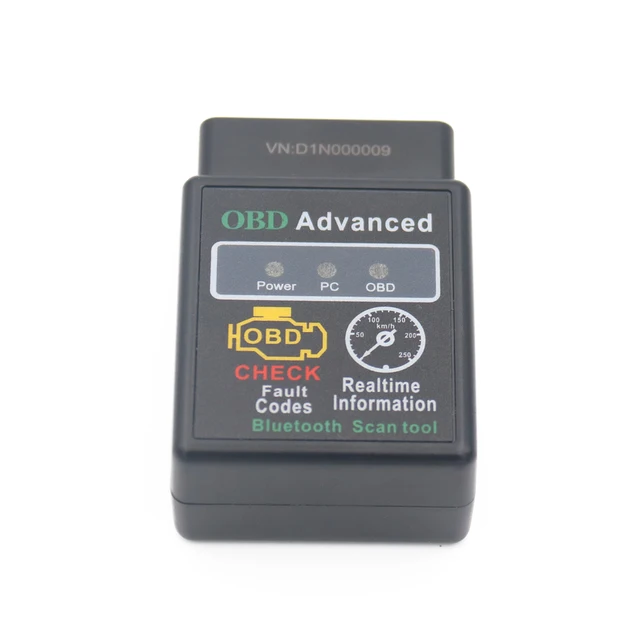

Mini HH OBD ELM327 V2.1V1.5 BT Code Reader Scan Tool Check Engine Super ELM 327 OBD2 OBDII Car Diagnostic Scanner for Android PC

Description

ELM327 Latest Version Super Mini ELM327 Bluetooth OBD2 Elm 327 Car Diagnostic Scanner Tool For OBD 2 OBDII Protocols
V2.1 Mini Bluetooth ELM327 OBD HH OBDII Protocolos OBD2 Car Diagnostic Scanner

Top 5 Reasons to Get V2.1 Mini Bluetooth ELM327 OBD HH:

1.This
is a vehicle diagnostic tool interface scanner, which is is used to
read trouble codes, clear trouble codes and detect fuel pressure and so
on.
2.OBDII
Software for ELM327 is a free program that allows you to use your PC
and a hardware interface to get the information from your car’s
computer.
3.The
program is very user-friendly, and easy to learn. It is also very easy
to install: simply extract the files into a folder on your computer’s
hard drive, and you’re ready to go.
4. To uninstall the program, simply delete the entire contents of the folder where the program resides.
5.The software supports four platforms – For DOS/Windows/Android. This product is a non-oem, generic product.
Notice: This device can’t work with IOS system.

Mini Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols:

• Works with all OBD-II compliant vehicles
• Wireless (Bluetooth)
• Software included for Palm, PDA
• Software included for Windows PC
• Software included for Windows Smartphone
• Supports ISO 9141, KWP2000
• Supports SAE J1850
• Supports CAN bus

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:

Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Device type: Car bluetooth read interface scanner
Interface type: Auto ELM327 V1.5 interface

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:

1. Scantool.net
2. GM Mode 22 Scan Tool by Terry
3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
4. OBD Logger by Jonathan Senkerik
5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 – local copy)
6. obd2crazy.com
7. OBD2 Scantool by Ivan Andrewjeski
8. OBDII for ELM322 by David Huffman
9. pyOBD by Donour Sizemore for MacOSX and Linux
10. RDDTC by Pete Calinski
11. Real Scan by Brent Harris
12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
13. OBD by WDT

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:

Read
diagnostic trouble codes, both generic and manufacturer-specific, and
display their meaning (over 3000 generic code definitions in the
database).
Clear trouble codes and turn off the MIL (“Check Engine” light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others

Package Including:

1pc x ELM 327 OBD HH Mini Bluetooth V2.1
1pc x CD Driver

ELM327 V1.5 Works Almost 99% Car Models on the World

Our ELM327 V1.5 PIC18F25K80 works with 12 V gasoline and diesel vehicles Only. Pls check car model from the list here at first .

Compatible software:

Window:ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS:Auto Doctor, Mini OBDII

Android:Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

Symbian:OBDScope

Multi-Language :

Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Features:

1. BT version ELM327 password :1234 or 0000 . WIFI Version ELM327 NO password.

2.BT ELM327——–Android phone working
WIFI ELM327——IOS&Android phone working

3.Samsung phone would not have stable connections, Samsung phone block strange connectors,pls understand

Function:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL (“Check Engine” light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages / associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

19. Many others

Specifications:

Model name: ELM327 OBD2 bluetooth

Type: code readers & scan tools

Output protocol: bluetooth

Color: black & white

Material : plastic

Voltage: 12V

Current: 45mA

Wave frequency: 38400Hz

Applicable scope: 5-10m / 16.4-32.8ft

Item size: 4.8 * 2.5 * 3.5cm / 1.89 * 0.98 * 1.37in

Item weight: 23g / 0.81oz

Package size: 8.8 * 8.8 * 4cm / 3.4 * 3.4 * 1.5in

Package weight: 48g / 1.69oz

Car List :

(ELM327 only support 12V Gasoline car, not support diesel cars!)
1. American cars support OBD2 after 1996 year;
2. European after 2004 year;
3. Asian after 2008;
4. some Japanese cars after 2005.
5. It supports Russian local cars.It supports for VAZ, 2112, 2119, 2117, 2170, 2121, 2123, for UAZ.
6. For LADA, we can’t guarantee.
7.For Ssangyong, it only supports from 2015 to now.

Note: Sometimes cars in different regions might be designed with different protocols!

ELM327 supports most car models but not all.
